FPD (Flat panel display) Test System
FPD (Flat panel display) Test system
A test system that can change and select the Resolution and Frame Rate of a video within a specified range for laptops, tablets, TVs, mobile phones, smart watches, VR devices, etc., and output the selected video through MIPI C & D, eDP interfaces to test performance, reliability, etc., for display panels such as LCD & OLED.
Main specifications
| PC S/W OS | Windows 10 64bit or Windows 11 64 bit | |
| Functions | 1) Initial code editing, transfer and display | 2) External video transmission and display through DP port |
| 3) Pattern image editing, transfer and display | 4) Internal graphic image transmission and display | |
| 5) Internal line pattern transfer and display | 6) Read/write registration, select PG device type | |
| 7) Check PG status | 8) Current status action | |
| 9)Voltage measurement | 10) Firmware update | |
| Use | PC + PC S/W + Ethernet HUB + UDT | |
| User Interface | USB-B, Ethernet, Power Switch, Function Keys, JTAG, LED, 12-Bits IP Address Set | |
| System | Processor ; Zynq ARM-A9 Dual Cores (766MHz), Memory : 4GB, 512GB microSD, OS : Embedded Linux (YOCTO) @Zynq | |
| Display | DP/eDP, MIPI C & D-Phy DSI-2, 6, 8,10,12 & 16 bits color depths, | |
| Video Compression (V-DSC v1.2a, VDC-M v1.2), | ||
| Internal Pattern /BMP/JPG/PNG support, Only from 2 DP port connectors | ||

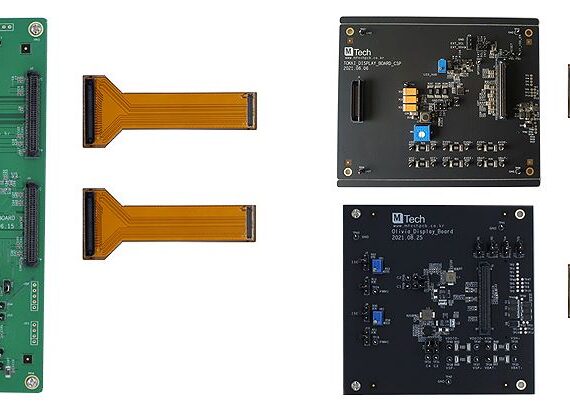

| Configuration / HW Spec | Zynq Module + Intel Arria 10GX FPGA Base Board + Power Modules + Interface Board | |
| / W120 x D210 x H 30mm. 900~1000 gram, -25℃ ~ 85℃ (OT) | ||
| Output Power Configure | VBAT1, VBAT2, VDD1, VDD2, VCI1, VCI2, VEXT1, VEXT2, VEXT3, VSS | |
| Output Power Sensing | VBAT1/IBAT1, VBAT2/IBAT2, VDD1/IDD1, VDD2/IDD2, VCI1/ICI1, VCI2/ICI2, , VSS | |
