Development service scope

• Digital & Analog electronic Schematic
• MCU, FPGA, DSP control Schematic
• LPDDR4~5, eMMC, NAND, Serial ROM, Micro SD, etc. Memory Schematic
• Wi-Fi 802.11 a/b/g/n/ac, Bluetooth, LTE & LTE Cat M1, Sub 1G, Ether CAT, Modbus, RS-232, RS-485, CAN BUS, TCP/ IP, USB, MIPI C & D, eDP, etc. Wired & Wireless communication Schematic
• Audio & MIC, Camera, Touch LCD Schematic
• Motor / Pump / Valve control Schematic (DC, AC, Step, BLDC)
• Sensor control Schematic (Pressure, Temperature, Humidity, Gas, Detection, Gyro, Speed, etc.)
• SMPS & etc Power Schematic
• FPGA logic Design (Xilinx, Altera, Evos)
• Development of product mass production quality reliability support (including CE, UL & FCC electromagnetic wave certification)

• Firmware (STM, AVR, PIC, TI, NXP i.MX6~8, RK3399, ARM Cortex M3~M7)
  Raspberry Pi & Arduino Programming
• DSP Programming(TI, ADI)
• Embedded Linux / Android / WinCE OS Porting & Device Driver
• PC & Mobile APP
• SERVER Program
• C++ , JAVA
• Oracle DB
• VISA Library
• Visual Studion, NetBeans, Toad(D/B)

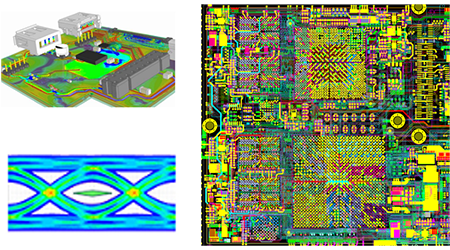

• SI, PI 3D Simulation Analysis Base PCB
• Substrate Package PCB
  – Min Trace 15um, Drill Via 80um
• 0.3mm Pitch BGA PCB
• Build-Up PCB
  – Stack Via, Outer Layer Trace/Space 75/75um
  – Inner Layer Trace/Space 50/50um,
  – Max 14 Layer
  – Max PCB Thickness 1.6T
• PCB for special purposes such as Automotive, Defense industry, Aviation, Ships, Satellites
• Ceramic PCB, Metal PCB, Cu 10Oz PCB
• Allegro 16.6 ~ 17.2
• PADS PowerPCB
• OrCAD Capture

• Allegro PCB SI / PI , Power SI / Power DC
• Mentor Hyper Lynx SI / PI
• HFSS / Slwave / Design

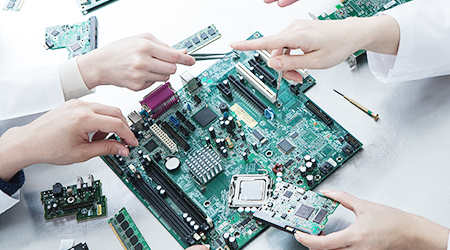

• Power short  & voltage/current Test
• Firmware & MAC Download, operation check and function Test
• Chip debugging & communication test, connector connection Test

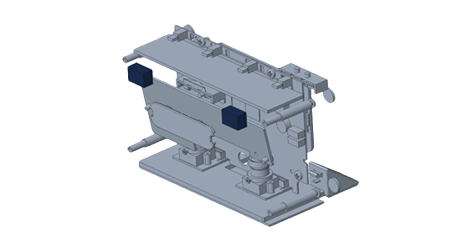

• Development of test JIGs according to customer specifications

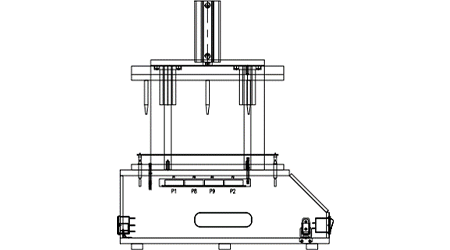

• Press JIG, simple standing JIG, air press JIG
• Connector connection JIG, replacement JIG
• Hand press top gun type JIG
• Utilizes hydraulic and pneumatic motors
• Integrated or separate design possible depending on order specifications
• SUS, Aluminum, Acrylic, Bakelite, Nickel, Plating
• Anodizing, Painting, Sheet metal, Mold
• 2D AutoCAD

CE, UL & FCC certification and pre-test support are provided only when you request development services from MTech.
