SMT & Assembly
Total Manufacture system.
Purchase of parts, small sample to mass production, production of both PBA & finished products
We produce 0402mm & 0.3Pitch BGA, FPGA Board, semiconductor test board, precision industrial products, and IT & IoT products.

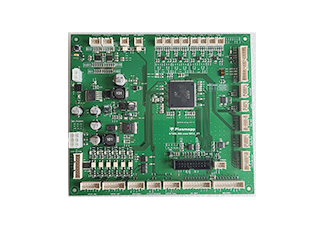

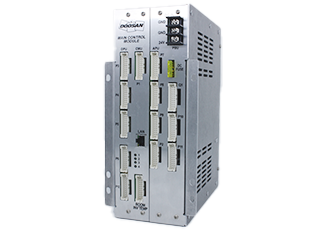

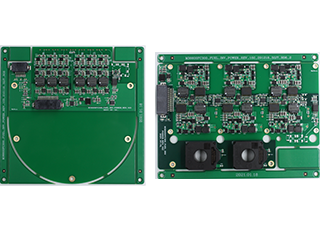

Product Portfolio

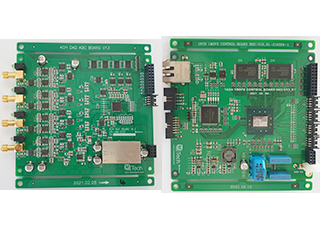

DAQ Board

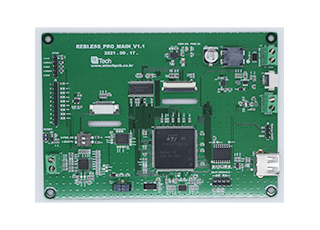

HMI Board

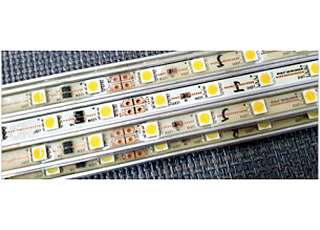

LED Bar Module
Semiconductor Equipment Board

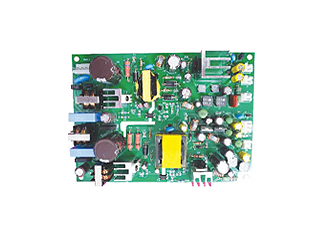

Power & SMPS

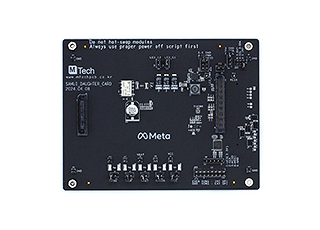

OLED testing platform Board
Control Board for Medical Devices
Motor Drive Control Board for Vehicles
Hydrogen Fuel Cell Controller
Blood sugar meter medical Device

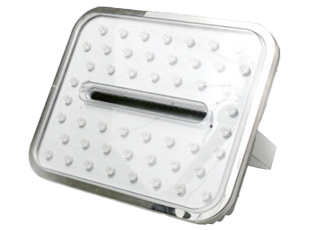

LED Lighting
Wearable Smart Band
Burglar alarm Products
SMT production factory
SMT Factory
| Factory 1 | Factory 2 |
|---|---|
| SMT 3Line / assemble 1Line | SMT 3Line / assemble 2Line / Test 1Line |
| 6 SMT peoples / 10 assembly peoples | 14 SMT peoples / 20 assembly peoples |
| Samsung Electronics Development & Production SEMES Quality Certification IT & IoT Products, TV Power Board SMPS, LED Module, ESL |
AIO, X-ray, precision industrial products production ISO9001, ISO140001 Medical & industrial products, semiconductor equipment & burn-in board LCD module, fuel cell controller |
| Quality Assurance: Depending on the product, we provide free after-sales service for manufacturing defects within 3 months, 6 months, or 1 year after delivery. | |

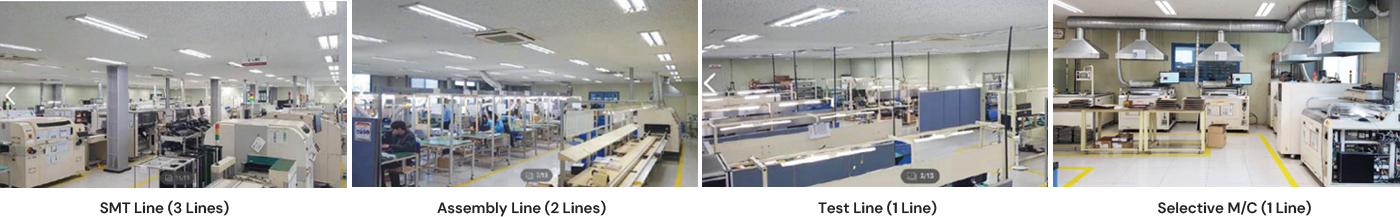

SMT production factory line
SMT Line
SMT & Assembly Capability
SMT & Assembly Capability
| Item | Spec |
|---|---|
| Max Board Size(mm) | 810 x 720 |
| Min Board Size(mm) | 50 x 50 |
| Thickness(mm) | 0.38 ~ 5.0 |
| Mounted Chip Size(mm) |
Min. Size :Chip 0402 Max. Size : IC 55 Connector : 75 |
| X & Y Tolerance(mm) | + / -0.05 ~ 0.8 |
| Metal Mask | SUS304 |
| SMT CAP: 155,000 points / 1HR Assembly CAPA: 50 points x 1000ea /1DAY |
|
Rework
- Rework available upon request for MTech SMT & assembly products only
- Rework – BGA REBALING 0.3Pitch ~ 1.27Pitch / 0.1Ball ~ 0.76 Ball
- P.O.P (Package on Package IC contact possible), Pattern repair circuit manufacturing

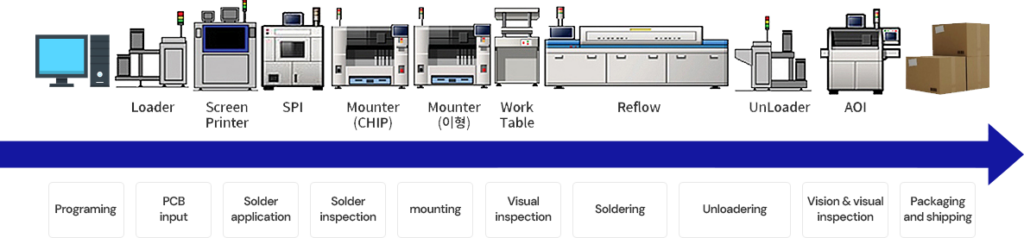

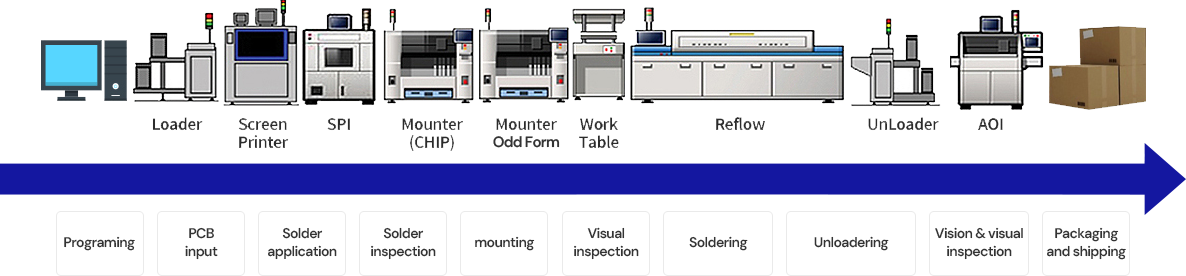

SMT progress process
SMT Process

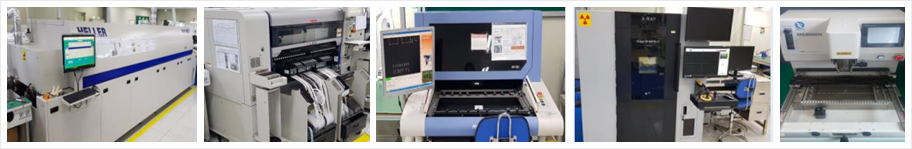

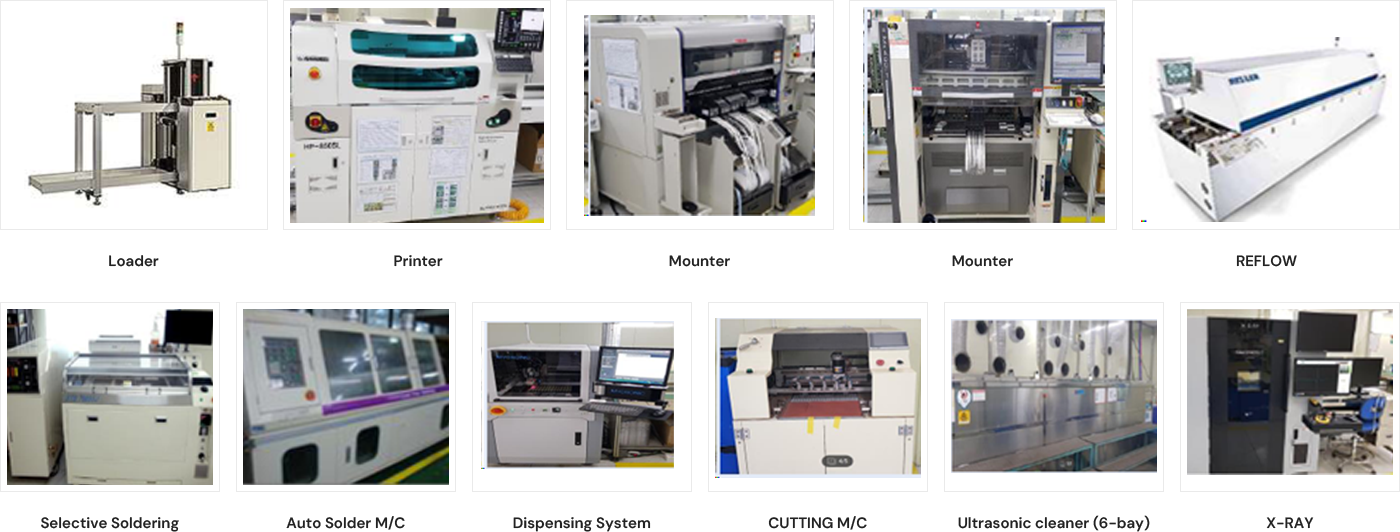

Equipment status
Equipment status
